Controllers
PH-C Series Instruments
RX-C Series Instruments
CD-C Series Instruments

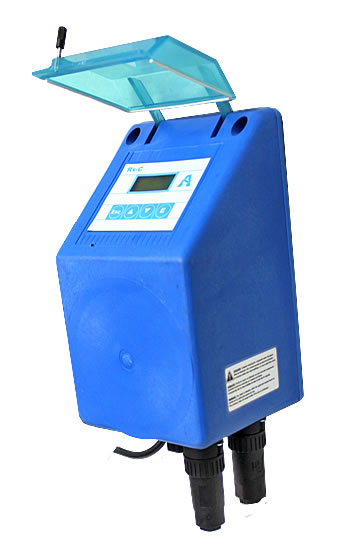

The C series instrument is designed to measure, monitor and regulate the pH, mV or EC through a metering pump, among other things. Typical applications include water treatment, drinking water treatment, chemical processing, wastewater treatment, swimming pools, food industry, wine industry, cooling towers, and boilers, among others.
This controller has the ability to work as auxiliary equipment in different processes, such as: using a manual dosing pump, a solenoid valve, alarms, contactors, and using ON-OFF systems to stop a device electrically connected to the instrument, as the reading on the display matches a previously set value.
PH-C: The instrument measures the pH within a range of 0 to14 pH.
RX-C: The instrument measures the mV value (RedOx Potential) in a range from 0 to 1000mV.
CD-C: The instrument measures the value of EC (TDS) ranging from0 to 20,000 uS/cm (0 -10000 ppm)

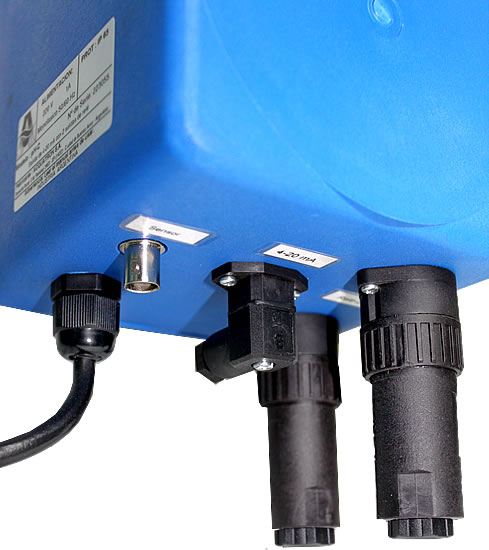

The C Series instrument may be affected by factors such as temperature, pressure at the point of insertion of the electrode and the electrical efficiency of the installation. It has 2 relay outputs for use with a dosing pump, for instance. It also has a 4-20 mA output for registration or proportional dosing control.
Instruments Data Sheet
pH, ORP, EC Electrodes Data Sheet
PH-C Series Instrument Manual
RX-C Series Instrument Manual
CD-C Series Instrument Manual
