Motor-Driven Metering Pumps

Diaphragm metering pump
Piston metering pump

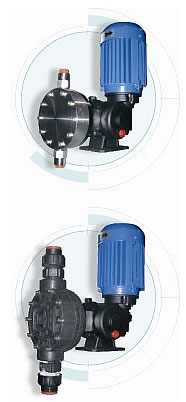

Diaphragm metering pump: D Series

Our direct diaphragm metering pumps are versatile, reliable, have proven quality and are manufactured under international standards.
They function with various flow rates depending on the fluid handling application, and using various materials according to the chemical to be dosed.
Recommended for use when the chemical has few suspended solids and the working pressure is low. It is also ideal for use with abrasive chemicals.
The mechanism works by varying the length of the adjustable stroke from 0 to 100% capacity, while the pump is running or stopped. It can also function according to a 4-20mA signal input.

Flows to 460 l/h (2916 GPD)
Pressures to10 bar (142 PSI)

D Series Data Sheet



Piston metering pump: A Series

Our direct piston metering pumps have multiple flow rates up to1458l/h, high precision, repeatability and proven quality, manufactured under international standards.
Recommended for use with non-abrasive chemical solutions or when high pressures are necessary.
The mechanism works by varying the length of the adjustable stroke from 0 to 100% capacity, while the pump is running or stopped.
Motors can be manufactured with anti-explosive parts.

Flows to 1500 l/h (9510 GPD)
Pressures to 20 bar (283 PSI)

A Series Data Sheet
